MOBILE CONNECTOR & CABLE CATALOG

Audio Jacks | Battery ConnectorsCable AssembliesCard ReadersClips & PP-Pads | Micro USBs | Pogos | RF Cables | Type C USBs

Card Readers

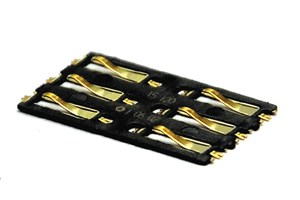

PART #: C707 10M006 231 2S

KEY FEATURES

  • 13.60L x 7.62W x 0.30H mm
  • Stable contact force
  • Rounded spooned contact design to accept
    multi-directional sim card insertions

Request complete drawing:
Sales_USA@amphenolmcp.com

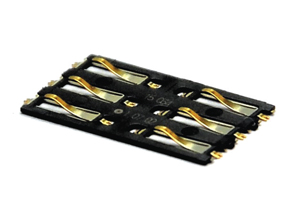

PART #: C707 10M006 249 2

KEY FEATURES

  • 13.60L x 7.62W x 0.30H mm
  • Stable contact force
  • Rounded spooned contact design to accept
    multi-directional sim card insertions

Request complete drawing:
Sales_USA@amphenolmcp.com

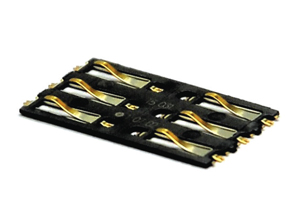

PART #: C707 10M006 262 2

KEY FEATURES

  • 13.60L x 7.62W x 0.30H mm
  • Stable contact force
  • Contacts without Anti-scratching mechanism

Request complete drawing:
Sales_USA@amphenolmcp.com

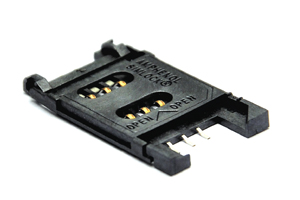

PART #: C707 10M006 500 2A

KEY FEATURES

  • 30.00L x 17.20W x 2.50H mm
  • Smooth locking and unlocking mechanism
  • SMD solderable

Request complete drawing:
Sales_USA@amphenolmcp.com

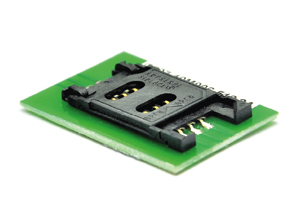

PART #: C707 10M006 512 2A

KEY FEATURES

  • 30.00L x 17.20W x 2.50H mm
  • Smooth locking and unlocking mechanism
    with wide solder tails

Request complete drawing:
Sales_USA@amphenolmcp.com

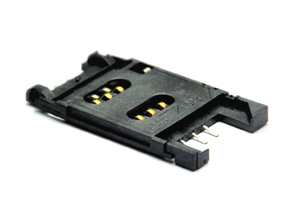

PART #: C707 10M006 522 2A

KEY FEATURES

  • 30.00L x 17.20W x 2.50H mm
  • With switch
  • Smooth locking and unlocking mechanism
  • SMD solderable

Request complete drawing:
Sales_USA@amphenolmcp.com

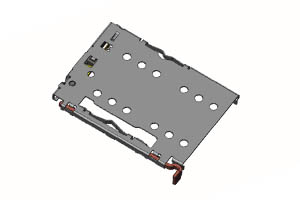

PART #: SCR-Z046D-A00

KEY FEATURES

  • 22.00L x 16.10W x 1.35H mm
  • Dual Nano SIM push push type
  • Robust leverage design
  • Good pin push feeling
  • Stable tray retention force
  • With through-hole
  • Mechanical lifetime Min. 3000 mating cycles
  • Modular solution

Request complete drawing:
Sales_USA@amphenolmcp.com

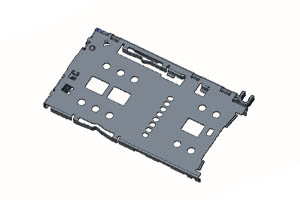

PART #: SCR-Z053C-A00

KEY FEATURES

  • 28.20L x 16.50W x 1.35H mm
  • Nano SIM & Micro SD or dual Nano SIM
  • Pin push tray type
  • Good pin push feeling
  • Stable tray retention force
  • Mechanical lifetime Min. 3000 mating cycles
  • Modular solution

Request complete drawing:
Sales_USA@amphenolmcp.com

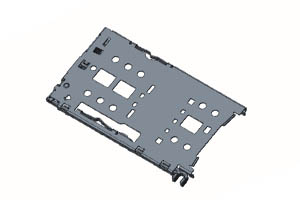

PART #: SCR-Z054B-A00

KEY FEATURES

  • 28.20L x 16.50W x 1.35H mm
  • Nano SIM & Micro SD or dual Nano SIM
  • Pin push tray type
  • Good pin push feeling
  • Stable tray retention force
  • Mechanical lifetime Min. 3000 mating cycles
  • Modular solution

Request complete drawing:
Sales_USA@amphenolmcp.com

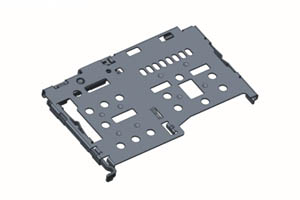

PART #: SCR-Z070B-A00

KEY FEATURES

  • 17.25L x 24.05W x 1.35H mm
  • Nano SIM & Micro SD or dual Nano SIM
  • Pin push tray type
  • Good pin push feeling
  • Stable tray retention force
  • Mechanical lifetime Min. 3000 mating cycles
  • Modular solution

Request complete drawing:
Sales_USA@amphenolmcp.com

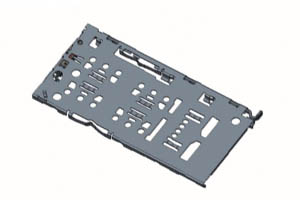

PART #: SCR-Z186C-A00

KEY FEATURES

  • 34.50L x 16.80W x 1.35H mm
  • Micro SD with Dual Nano SIM tray type
  • With switch block
  • Good pin push feeling
  • Robust leverage design
  • Mechanical lifetime Min. 3000 mating cycles
  • Modular solution

Request complete drawing:
Sales_USA@amphenolmcp.com

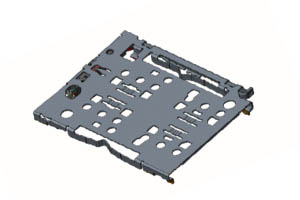

PART #: SCR-Z4460-A00

KEY FEATURES

  • 22.20L x 16.80W x 1.35H mm
  • Nano SIM & Micro SD or dual Nano SIM
  • Hot insertion prevention
  • With excellent insertion feeling
  • Mechanical lifetime Min. 3000 mating cycles
  • Excellent operation feeling
  • SMD solder able
  • Packed in tape & reel

Request complete drawing:
Sales_USA@amphenolmcp.com

PART #: SCR-Z5190-A00

KEY FEATURES

  • 15.35L x 12.30W x 2.55H mm
  • Dual Nano SIM pin push tray type
  • Hot insertion prevention
  • Contact with Anti-scratching mechanism
  • With excellent insertion feeling
  • Mechanical lifetime Min. 3000 mating cycles
  • Independent operation feeling
  • SMD solderable
  • Packed in tape & reel

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SDB-Z0670-A00

KEY FEATURES

  • 13.30L x 11.18W x 1.35H mm
  • Stable contact force
  • Contact force: 0.20N Min.
  • Contacts with Anti-scratching mechanism
  • Mechanical lifetime Min. 3000 mating cycles

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-A1150-A00

KEY FEATURES

  • 30.00L x 17.20W x 2.80H mm
  • With detect switch
  • Hinge type
  • Contact position acc. To GSM

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z041A-A00

KEY FEATURES

  • 13.70L x 7.40W x 0.90H mm
  • Stable contact force
  • Contact force : 0.20N min
  • Contact with Anti-scratching mechanism

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z068A-A00

KEY FEATURES

  • 13.60L x 7.62W x 0.85H mm
  • Stable contact force
  • Contact force: 0.20N min
  • All-rounder design

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z095D-A00

KEY FEATURES

  • 10.0L x 7.7W x 5.70H mm
  • Stable contact force
  • Contact with Anti-scratching mechanism

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z0600-A00

KEY FEATURES

  • 12.95L x 7.50W x 0.85H mm
  • Stable contact force
  • Contact force: 0.20N min
  • Contact with Anti-scratching mechanism
  • With detect switch

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z0610-A00

KEY FEATURES

  • 12.95L x 7.50W x 0.90H mm
  • Stable contact force
  • Contact force: 0.20N min
  • Contact with Anti-scratching mechanism

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z0630-A00

KEY FEATURES

  • 8.00L x 8.64W x 0.90H mm
  • Stable contact force
  • Contact force: 0.20N min
  • Contact with Anti-scratching mechanism

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z0720-A00

KEY FEATURES

  • 15.60L x 10.00W x 2.85H mm
  • Stable contact force
  • Spone contact to get good insertion
  • Contact force: 0.20N Min.

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z0850-A00

KEY FEATURES

  • 30.80L x 19.90W x 3.15H mm
  • With detect switch
  • Hinge type
  • Contact position acc. To GSM

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z0880-A00

KEY FEATURES

  • 28.75L x 20.55W x 2.90H mm
  • With detect switch
  • 8 pins
  • Switch normally open

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z4420-A00

KEY FEATURES

  • 13.25L x 9.80W x 1.00H mm
  • Integrated with SD contact
  • Durability ≥ 3000 mating cycles
  • Contact with Anti-scratching mechanism
  • Full automatic line/Platform assembly mode

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SMB-Z5200-A00

KEY FEATURES

  • 13.20L x 7.35W x 0.94H mm
  • Stable contact force
  • Contact force: 0.20N min
  • Contact with Anti-scratching mechanism

Request complete drawing:
Sales_USA@amphenolmcp.com

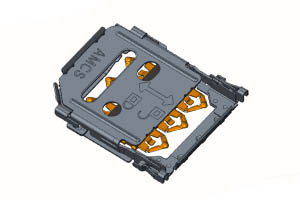

PART #: SSH-Z051B-A00

KEY FEATURES

  • 13.30L x 11.18W x 1.35H mm
  • With detect switch
  • Hinge type
  • Contact position acc. To GSM

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SSH-Z0500-A00

KEY FEATURES

  • 12.20L x 9.64W x 1.20H mm
  • Nano SIM push pull type
  • Mechanical lifetime Min. 1000 mating cycles
  • Modular solution

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SSH-Z1970-A00

KEY FEATURES

  • 14.60L x 12.50W x 1.35H mm
  • Nano SIM pin push tray type
  • Mechanical lifetime Min. 1000 mating cycles
  • Modular solution

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SSM-A113A-A00

KEY FEATURES

  • 17.66L x 21.95W x 1.78H mm
  • Micro SD push push type
  • Mechanical lifetime Min. 1000 mating cycles
  • Wrongly insertion prevention

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SSM-A114A-A00

KEY FEATURES

  • 16.53L x 21.22W x 1.45H mm
  • Nano SIM pin push tray type
  • Mechanical lifetime Min. 1000 mating cycles
  • Wrongly insertion prevention
  • With switch block

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SSM-Z460A-A00

KEY FEATURES

  • 13.87L x 11.20W x 1.25H mm
  • Nano SIM push push type
  • Mechanical lifetime Min. 1000 mating cycles
  • Wrongly insertion prevention

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SSM-Z470C-A00

KEY FEATURES

  • 15.25L x 12.50W x 1.45H mm
  • Nano SIM pin push tray type
  • Mechanical lifetime Min. 3000 mating cycles
  • Contact with Anti-scratching mechanism

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SSM-Z4410-A00

KEY FEATURES

  • 15.75L x 12.30W x 2.55H mm
  • Dual Nano SIM pin push tray type
  • Hot insertion prevention
  • Contact with Anti-scratching mechanism
  • With excellent insertion feeling
  • Mechanical lifetime Min. 3000 mating cycles
  • Independent operation feeling
  • SMD solderable
  • Packed in tape & reel

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SSM-Z4450-A00

KEY FEATURES

  • 12.30L x 10.95W x 0.90H mm
  • Integrated with SD contact
  • Contact with Anti-scratching mechanism
  • Mechanical lifetime Min. 3000 mating cycles

Request complete drawing:
Sales_USA@amphenolmcp.com


PART #: SSM-Z5430-A00

KEY FEATURES

  • 18.00L x 15.85W x 2.55H mm
  • Nano SIM & Micro SD or dual Nano SIM
  • Pin push tray type
  • Good pin push feeling
  • Stable tray retention force
  • Mechanical lifetime Min. 3000 mating cycles

Request complete drawing:
Sales_USA@amphenolmcp.com
